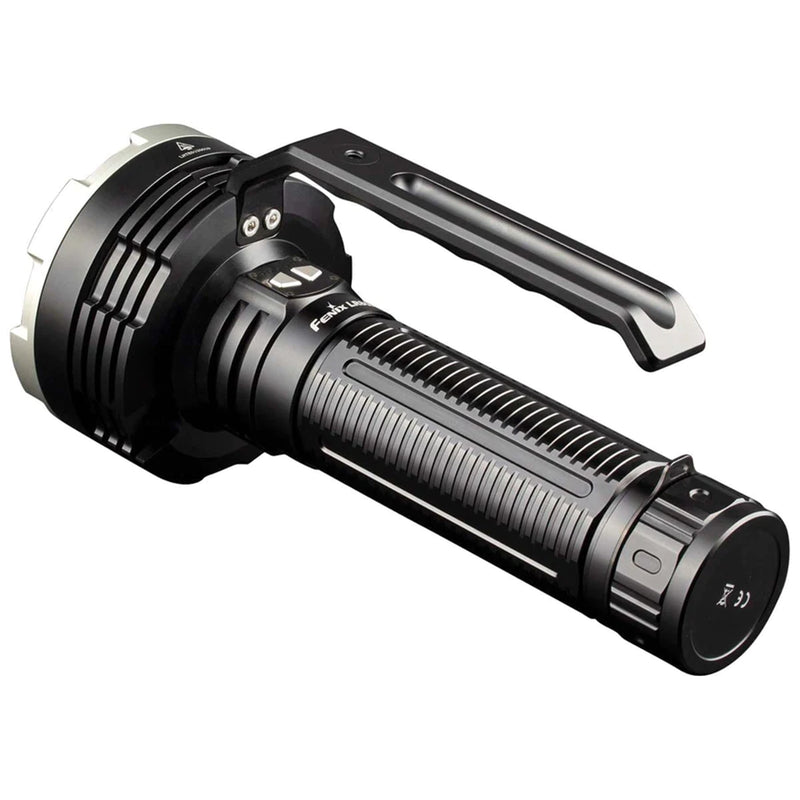

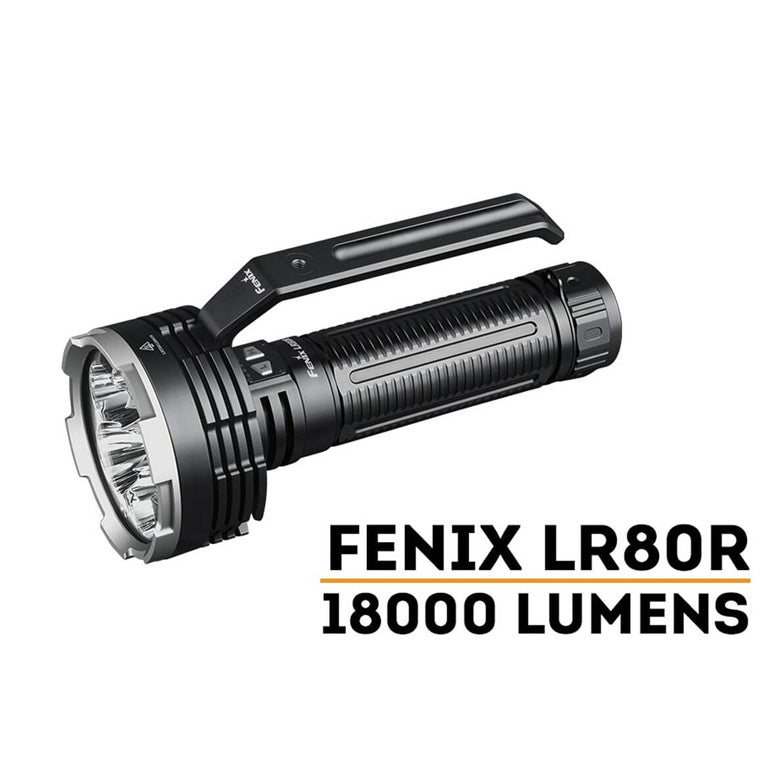

Fenix Work & Search & Rescue LR80R Rechargeable Searchlight Max 18,000 Lumens, Head: 4.25" (108mm), Built-in 7.2V/12000 mAh Li-ion Battery Pack, Max 1,130m Beam Distance. Build-in Dual Ports incl USB-A and Type C Ports Provide Dual-Function
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email atadmin@layawaydepot.co.nzand let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
NOTE: This is a promotion pack. Includes 1x LD15R and 1x AB02 Belt Clip!
Fenix AB02 Flashlight Belt Clip - Black
The flashlight belt clip is an accessory specially designed for outdoor flashlights to free your hands when using them. It can be attached to belts and backpacks. With its characteristic 360-degree rotation, it will provide a multi-dimension illumination for you. Setting your hands free, it will be the ideal accessory for your outdoor flashlights while hiking, climbing, working outdoors, and doing routine maintenance.
Features:
- Utilizes stainless steel clips, plus with scratch-resistant nylon holsters, it is strong and durable
- Rotates 360 degrees and locks in 12 different illuminating positions
- Simple to attach and operate
- Fits flashlights with diameters of 18-26mm.
Warning: This light is a high-intensity lighting device capable of causing severe eye damage. Avoid shining the light directly into anyone's eyes.
Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!
The Fenix LD15R rechargeable flashlight is a compact, hands-free light source that utilizes a right-angle head-perfect for those that need forward facing 90 degree wide angle light for high and low light situations. This light is compatible with MOLLE / Body Cam systems for the professional environment or can be a perfect fit to clip on your backpack for those personal hikes. The two-way body clip and magnetic base allow you to mount this light to just about anything. Powered by a rechargeable 16340 battery (included), this tiny flashlight blasts 500 lumens at a distance of 279 feet (85m). Easily switch between the seven lighting modes that include white and red light options. IP68 rated waterproof and dust proof build will ensure this light is there for you when you need it.
Additional Features:
- Cree XP-G3 white LED with lifespan of 50,000 hours
- EVERLIGHT red LED
- Powered by one 16340 rechargeable Li-ion battery or CR123A Lithium battery
- 5V/1A Micro USB charging
- Battery level indication
- Digitally regulated output maintains constant brightness
- Two-way body clip and magnetic tail
- Reverse polarity protection to protect from improper battery insertion
- Low-voltage warning reminds when battery replacement is needed
- Made of durable high-strength and oxidation-resistance aluminum
- Premium type HAIII hard-anodized anti-abrasive finish
- Fitted with high quality optical lens
Operating Instructions
ON/OFF:
- With the light switched off, press and hold the top switch for 0.5 seconds to turn on the light on the last used output.
- With the light turned on, press and hold the top switch for 0.5 seconds to turn off the light.
Output Selection:
- With the light switched on white light mode, single click the top switch to cycle through Low, Med, High, Turbo.
- With the light switched on red light mode, single click the top switch to cycle through Red, Signal Light, SOS.
Mode Switching:
- In white light mode, press and hold the top switch for 1.2 seconds to enter red light mode.
- In red light mode, press and hold the top switch for 1.2 seconds to enter white light mode.
Battery level Indication: With the light switched off, single click the top switch. The battery level indicator will display the battery status for 3 seconds.
- Green constant on: saturated, 100% - 85%
- Green flashes: sufficient, 85% - 50%
- Red constant on: poor, 50% - 25%
- Red flashes: critical, 25% - 1%
Note: There is no indication when CR123A battery is used.
Charging:
1. Turn off the light. Plug the USB side of the charging cable into any USB power supply. Uncover the anti-dust cap of the light, and plug the Micro USB side of the charging cable into the charging port of the light.
2. The battery level indicator displays red while charging and turns to solid green when charging is complete. The normal charging time of the included Fenix ARB-L17-700 is about 1.5 hours.
3. Once charging is completed, be sure to remove the charging cable and replace the anti-dust cap to protect against dust and foreign objects.
4. Recharge a stored light every four months to maintain optimum performance of the battery.
5. Only Low output can be used when the light is being charged, but charging time will be prolonged.

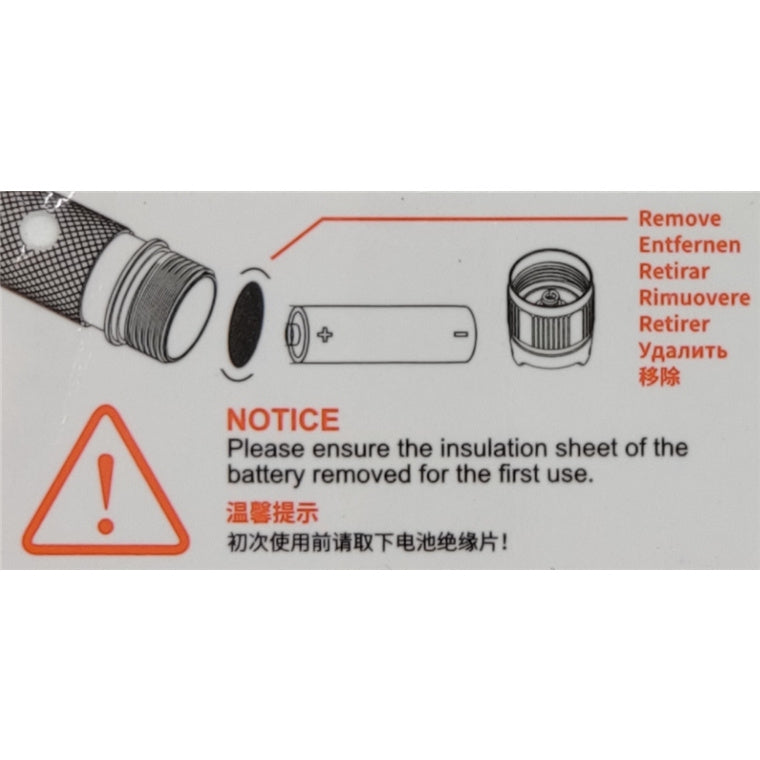

Battery Replacement: Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.
Time-limited Output Downshifting: The light will accumulate a lot of heat when working at Turbo output level. To prevent high surface temperature the light is programmed to downshift to 200 Lumens after working for 5 minutes.
Intelligent Memory Circuit: The light memorizes the last selected brightness level on white light mode. When turned on again the previously used brightness level will be recalled.
Low-voltage Warning:
When the voltage level drops below a preset level, the flashlight is programmed to step down to a lower brightness level until Low output is reached. When this happens in Low output level, the battery level indicator will display red and the flashlight blinks every three seconds to remind you to replace the battery. To ensure normal use, the flashlight will work until the battery runs out.
Note: This only work with the rechargeable 16340 Li-ion battery.
Usage and Maintenance:
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using an excellent quality battery.
- If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
- Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
- Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: The battery needs replacing.
Solution: Replace battery (Ensure battery is inserted according to the manufacturer's specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
Length 2.76" / 70mm
Body Diameter 0.75" / 19mm
Weight 1.41 oz / 40g
