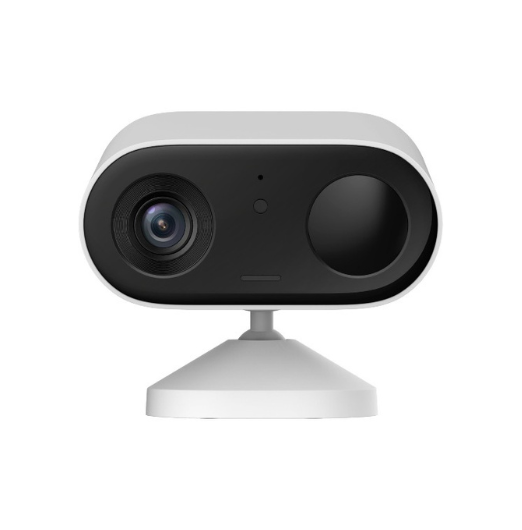

IMOU Cell Go 3MP/2K Outdoor Smart Wire-Free Camera, Built-in 4GB eMMC Storage
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email atadmin@layawaydepot.co.nzand let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.
Smart Dual Illuminators
Dahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm
One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Camera
Image Sensor-1/2.8" CMOS
Max. Resolution-3840 (H) — 2160 (V)
ROM-128 MB
RAM-512 MB
Scanning System-Progressive
Electronic Shutter Speed-Auto/Manual 1/3 s-1/100,000 s
Min. Illumination:
0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio- 56 dB
Illumination Distance:
30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control-Auto; manual
Illuminator Number:
1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range:
Pan: 0°-360°
Tilt: 0°-78°
Rotation: 0°-360°
Lens
Lens Type-Fixed-focal
Mount Type-M12
Focal Length-2.8 mm; 3.6 mm
Field of View:
2.8 mm: Horizontal: 106°— Vertical: 55°— Diagonal: 125°
3.6 mm: Horizontal: 85°— Vertical: 45°— Diagonal: 100°
Iris Type-Fixed
Close Focus Distance:
2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)
Video
Video Compression-H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec-Smart H.265+; Smart H.264+
AI Coding-AI H.265; AI H.264
Video Frame Rate:
Main stream: 3840 — 2160@(1 fps-30 fps)
Sub stream: 704 — 576@(1 fps-25 fps)/704 — 480@(1 fps-30 fps)
Third stream: 1920 — 1080@(1 fps-30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability-3 streams
Resolution:
8M (3840 — 2160); 6M (3072 — 2048); 5M (3072 — 1728/2592 — 1944); 4M (2688 — 1520); 3M (2048 — 1536/2304 — 1296); 1080p (1920 — 1080); 1.3M (1280 — 960); 720p (1280 — 720); D1 (704 — 576/704 — 480); VGA (640 — 480); CIF (352 — 288/352 — 240)
Bit Rate Control-CBR/VBR
Video Bit Rate:
H.264: 3 kbps-20480 kbps
H.265: 3 kbps-20480 kbps
Day/Night-Auto (ICR)/Color/B/W
BLC-Yes
HLC-Yes
WDR-120 dB
Scene Self-adaptation-Yes
White Balance-Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control-Auto; manual
Noise Reduction-3D NR
Motion Detection-OFF/ON (4 areas)
Region of Interest (RoI)-Yes (4 areas)
Smart Illumination-Yes
Defog-Yes
Image Rotation-0°/90°/180°/270° (Support 90°/270° with 2688 — 1520 resolution and lower)
Mirror-Yes
Privacy Masking-8 areas
Audio
Built-in MIC-Yes
Audio Compression-PCM; G.711a; G.711Mu; G.726; G.723
Network
Network-RJ-45 (10/100 Base-T)
SDK and API-Yes
Cyber Security:
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol:
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability:
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host-20 (Total bandwidth: 72 M)
Storage-FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser
IE: IE8/9/11
Chrome
Firefox
Management Software-Smart PSS; DSS; DMSS
Mobile Phone-iOS; Android
Port
Audio Input-1 channel (RCA port)
Audio Output-1 channel (RCA port)
Alarm Input-1 channel in: 5 mA 3V-5 VDC
Alarm Output-1 channel out: 300 mA 12 VDC
Power
Power Supply-12 VDC/PoE (802.3af)
Power Consumption:
Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions: -40 °C to +60 °C (-40 °F to +140 °F)/Less than 95% RH
Storage Conditions: -40 °C to +60 °C (-40 °F to +140 °F)
Protection Grade: IP67
Structure
Casing-Metal
Dimensions: 110.9 mm — F122.0 mm (4.4" — F4.8")
Net Weight-745 g (163.1 lb)
Gross Weight-915 g (200.6 lb)
