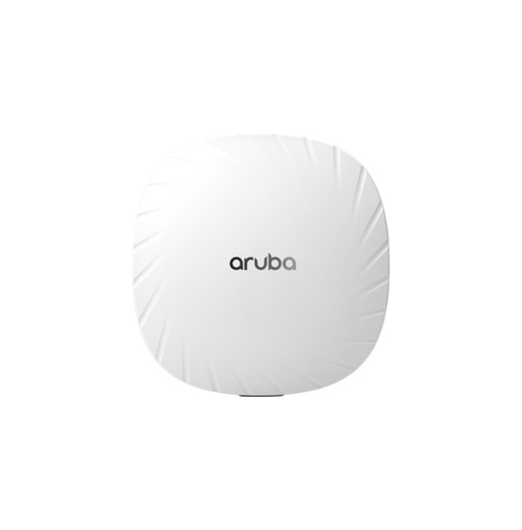

HPE Aruba Q9H62A AP-515 Wi-Fi 6 4x4:4 + 2x2:2 Indoor AP515 Access Point Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Term:
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email atadmin@layawaydepot.co.nzand let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!
GRANDSTREAM GWN7664 4X4 802.11AX WIFI 6 LONG RANGE WIRELESS ACCESS POINT
The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range.
The GWN7664 is supported by GWN. Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product's web user interface for easy administration of locally deployed Wi-Fi Aps.
The GWN7664 is the ideal WiFi6 AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
Features
- Simplify your network management with Free Cloud management on GWN.Cloud or use built in controller
- Built with Qualcomm's market-leading Wi-Fi 6 chipset on both 2.4GH and 5GHz bands
- Dual-band 4x4:4 MUMIMO with DL/UL OFDMA on both 2.4GH and 5GHz bands
- 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
- Qualcomm chipset on the GWN7664 supports 160 million streams
- 1x 1Gb Port and 1x 2.5Gb Ethernet Ports support 3.5Gbps aggregate wire throughput
- Long range up to 175-meter coverage
- Support 512+ concurrent Wi-Fi client devices
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Advanced QoS to ensure real-time performance of low-latency applications
- Ideal product for Managed service provider (MSP) solution
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6 on both 2.4GHz and 5GHz!)
Antennas
8 individual internal antennas, 4 per band; 2.4GHz, gain 3dBi, 5 GHz, gain 4dBi
MIMO
4—4:4 2.4GHz, 4—4:4 5GHz
Frequency Bands
2.4GHz Radio: 2412 - 2484 MHz, 5GHz Radio: 5180 - 5825 MHz
Channel Bandwidth
2.4GHz: 20 and 40 MHz (x4), 5GHz: 20, 40 and 80 MHz (x4) or 160MHz (x2)
Maximum TX Power
5GHz: 25dBm, 2.4GHz: 26dBm
Minimum Receiver Sensitivity
-99dBm @ 2.4GHz, -95dBm @ 5GHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
512+
Network Interfaces
1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
1 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at;
Maximum Power Consumption
17W
Environmental
Operation: 0°Cto 50°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Unit Dimension
205.3mm(L)x205.3mm(W)x405.9mm(H); Unit Weight: 0.714Kg
Entire Package Dimension
258x247x86mm; Entire Package Weight: 1.06Kg
Compliance
FCC, CE, RCM, IC
